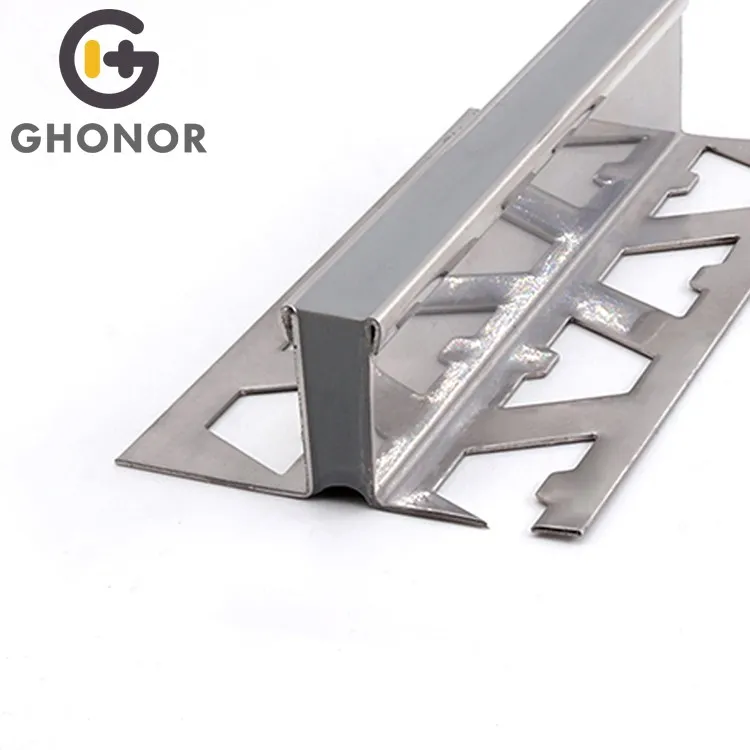

Stainless steel control joint in floor tiles are a rugged solution that protects tile edges and controls structural movement in harsh environments. Heavy-duty expansion joints in 304 or 316 stainless steel are more suitable for commercial, industrial and sanitary areas with high traffic volume. The expansion joint system uses two stainless steel support feet and is filled with flexible silicone to absorb translational movement between tiles while keeping the surface clean and durable. Thickness options include 8mm, 10mm, 12.5mm, 15mm and 22.5mm, and length options include 2.44 or 3.05 meters.
Products Description
|
Products Name |
Stainless steel control joint in floor tiles |
|
Material |
High-quality 304& 316 stainless steel, silicone insert |
|
Color |
Silver, gold, black color are available |
|
Height |
8/10/12m or customized |
|
Length |
2.44/2.5/2.7/3m or customized |
|
Surface Treatment |
Brushed, Polished / customized |
Design Option
Advantage
- High Strength and Durability:
Made of high-quality stainless steel (304/316), resistant to corrosion, chemicals and mechanical wear.
Protects tile edges from chipping or cracking under heavy loads.
- Hygienic Design:
The smooth, non-porous surface prevents bacterial growth and can be used in hospitals, laboratories and food processing facilities, and is easy to clean and maintain.
- Shock Absorption:
Silicone fillers are more shock-absorbent and can accommodate thermal expansion and contraction and substrate movement to prevent tile damage.
- Aesthetic Blend:
The smooth stainless steel surface can be paired with modern tile layouts for a more aesthetically pleasing and modern look.
- Easy Installation:
Prefabricated lengths and flexible silicone simplify alignment and reduce labor installation time.
Why Choose Silicone Fillers?
The silicone core is critical to the performance of the joint:
- Flexibility: Absorbs multi-directional movement (compression/tension) without losing shape.
- Waterproofing: Seals the joint to prevent moisture intrusion and prevent mold or substrate damage.
- Chemical resistance: Resistant to oils, acids and detergents.
- High temperature resistance: Stable performance in extremely hot or cold environments (-50°C to +200°C).
- Low maintenance cost: Remains flexible for a long time and does not need to be replaced under normal conditions.
Application
This Stainless steel control joint in floor tiles is ideal for:
- Industrial Facilities: Factories, warehouses and workshops with heavy machinery.
- Healthcare and Food Areas: Hospitals, clean rooms, kitchens and slaughterhouses with strict hygiene requirements.
- Commercial Spaces: Shopping malls, airports and gyms with high traffic.
- Wet Areas: Swimming pools, showers and outdoor patios exposed to moisture and temperature fluctuations.

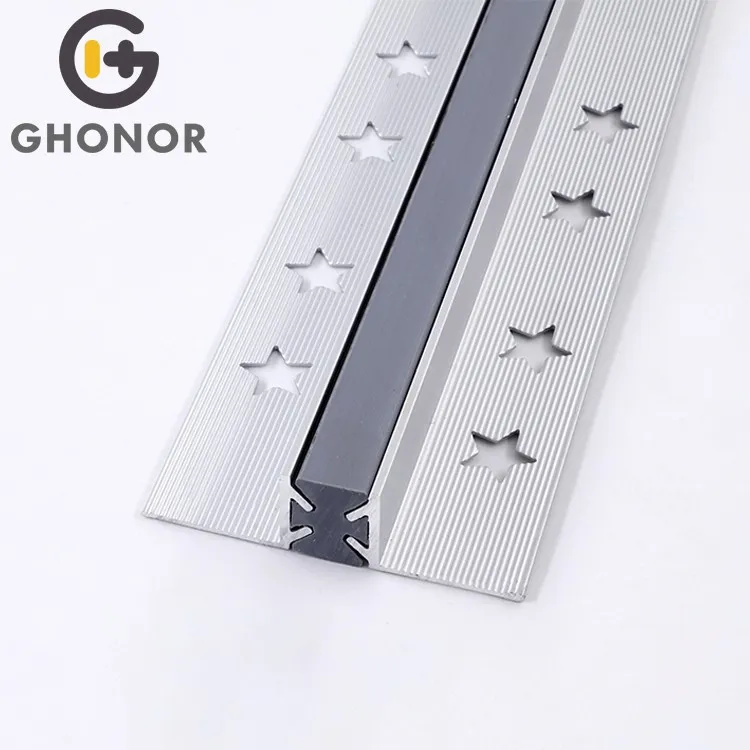

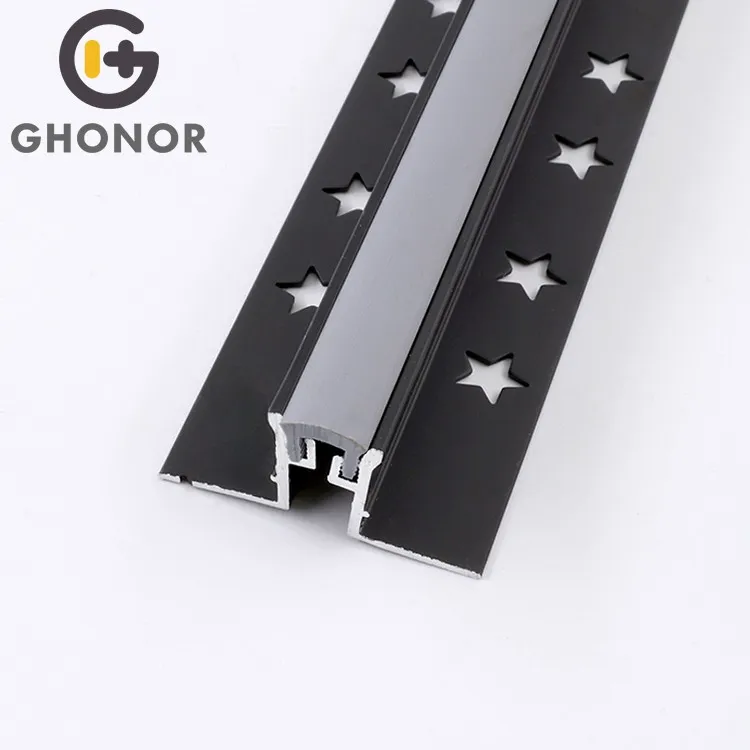

Stainless steel movement Joints VS aluminum Movement Joints
Aluminum joints are lighter and more economical, but many heavy-loaded and impact-prone areas and highly corrosive areas require the use of Stainless steel control joint in floor tiles . Its compression resistance, corrosion resistance and hygienic advantages are unmatched by aluminum and pvc expansion joints.
About Us
Customization and production capabilities
Our factory focuses on providing customized solutions to meet unique project needs:
- Material selection:
Depending on different corrosion resistance requirements, 304 or 316 stainless steel can be selected.
- Customized size:
The depth (8mm - 22.5mm), length (up to 3.05 meters) and profile can be adjusted according to tile thickness and joint specifications.
- Surface Treatment:
Brushed, polished or textured finishes to enhance the aesthetics of the tile.
- Silicone Filler Material:
Customizable hardness and color (brown, black, grey, etc.) depending on design or functional needs.
- Bulk Production and Packaging:
Large orders are protected with packaging to ensure safe shipping worldwide.
